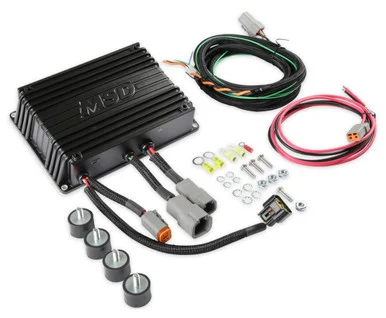

Single-channel capacitive discharge ignition designed for high cylinder pressure, high horsepower engines running an MSD Power-Grid.
Additionally, the ignition’s high-efficiency design reduces power demand from the battery, which in turn reduces loads on the wires and connectors. As the Single Channel Pro 600 Ignition is designed for the most challenging applications, it is also capable of continuous full-power operation. The Single Channel Pro 600 Ignition is designed to work with the MSD Power-Grid and can provide firing-by-firing spark current data acquisition. A Diagnostic LED detects the presence of faults – such as an Open Coil Primary, Shorted Coil Primary, Reversed Primary Connections, or Open Coil Secondary.
Features & Benefits
- Adjustable output energy up to 680 millijoules (mJ)
- Over 3A peak spark current when used with the recommended ignition coil PN 82612/3
- Compatible with 8/6/4 cylinder engines
- Spark current sense and recording for each firing
- Spark duration of greater than 250 microseconds
- Rated for continuous operation at an output of 600 mJ
- Operates between 12- 28V
- Minimum starting voltage 6-volts
- Direct plug-in to MSD Power Grid Controller PN7730
- Reverse battery protection
- Internally protected from damage caused by internal over-temperature or open / shorted coil
- Diagnostic LED detects the presence of faults
- On-the-fly Power Output selection wire
| Color: | Black |
|---|---|
| Primary Voltage: | 330-550 Volts |
| RPM Range: | 15,000 RPM / 10,000 RPM at Full Power |
| Spark Energy: | 250-680 mj |
| Current Draw: | 3 Amps per 1,000 RPM @ 16 Volts and 600 mJ |
| Product Type: | Ignition Box |
| Secondary Voltage: | 50,000 Volts |
| Part Type: | Ignition Control Module |
