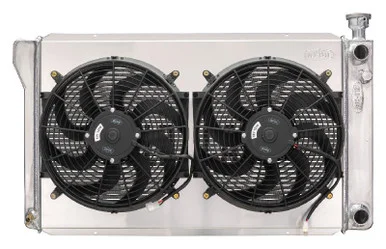

88-98 GM 1500 Truck w/LS Swap Aluminum Radiator Kit w/Dual 14″ Fans
Designed to be used with an external trans cooler
1988-1998 Chevrolet/GMC 1500 Series Truck Radiator and 14 inch Fan Kit for LS Swap engines. These COLD-CASE radiators are Tig welded 100 percent aluminum and absolutely beautiful.
Don’t buy a 3 or 4 row aluminum radiator! It doesn’t cool as good as these oversize 2 row models.
100 percent TIG welded
All Aluminum
Polished tanks
16 fins per inch
Corrugated fins that give more surface area and more thermal transfer
Pressure tested
Dual 14 inch fan and shroud kit producing 3600CFM
Radiator Specs
Core Height 17.65 inch
Core Width 28.5 inch
Overall Height 20.4 inch to cap
Overall Width 33.85 inch
Overall Thickness 6.75 inch
Tubes (2) 1.25 inch Tubes
Upper Hose 1.50 inch
Lower Hose 1.50 inch
| Blade Material: | Curved Nylon |
|---|---|
| Engine: | LS Swap |
| Material: | Aluminum |
| AMP DRAW: | 14 |
| Part Type: | Radiator Kit |
| Finish: | Polished |
