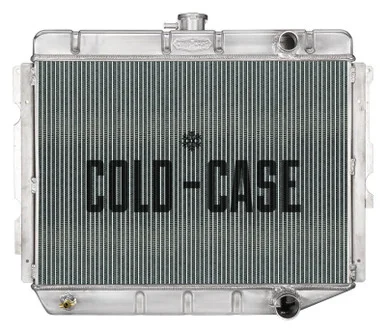

66-74 Mopar A/B/E-Body w/Late Model Hemi Swap Manual 17×26 Aluminum Radiator
1966-1974 Mopar A/B/E Body 17×26 Late Model Hemi Swap Aluminum Performance Radiator. MT Cars. Fits some of the following. Double check dimensions. If using original fan shroud, 2785435 will work. Just will need to drill holes into radiator flange.
- 70-73 Barracuda
- 70 Belvedere
- 66-73 Charger
- 70-74 Challenger
- 66-73 Coronet
- 66-72 GTX
- 66-73 Road Runner
- 66-73 Satellite
These COLD-CASE radiators are Tig welded 100 percent aluminum and absolutely beautiful. Don’t buy a 3 or 4 row aluminum radiator! It doesn’t cool as good as these oversize 2 row models.
These radiators are original appearing and have the correct stamping. Once painted, you’d be hard pressed to find a difference over an original versus a COLD-CASE.
- 100 percent TIG welded
- All Aluminum
- (2) 1.25 inch Tubes
- Polished OE style tanks
- 16 fins per inch
- Corrugated fins that give more surface area and more thermal transfer
- Pressure tested
- For manual trans
Radiator Specs
- Core Height 17.25 inch
- Core Width 24.3 inch
- Overall Height 23 inch
- Overall Width 29 inch brackets
- Overall Thickness 3 inch
- Tubes (2) 1.25 inch Tubes
- Upper Hose 1.50 inch
- Lower Hose 1.75 inch
| Material: | Aluminum |
|---|---|
| Part Type: | Radiator |
| Transmission Type: | Automatic |
