Description

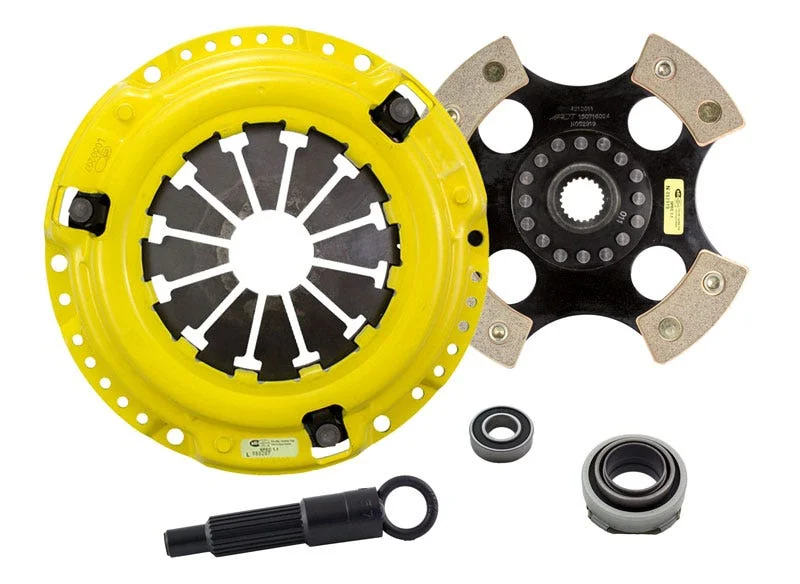

ACT HC7-XXR4 – MaXX/Race Rigid 4 Pad
ACT Maxx Xtreme Clutch Kits are made from the highest quality materials, and guarantee to deliver superior functionality and durability. They afford a clamp load increase up to 150% with a stiffer pedal feel, and many of these units are SFI-certified to ensure safety.
Key Features:
- 212mm upgrade
- Must use with 1990-2001 SOHC flywheel
- Spline Size (Inches): 7/8
- Disc Type: Race Disc
- Spline Count: 21
- Product Weight (lbs.): 9.8
- Torque Capacity (ft./lbs.): 420
- Heavy to very heavy pedal effort, aggressive engagement, quickest shifts, increased gear rattle
- Moderate friction life, extended by ACT’s exclusive diaphragm design, rigid design may increase spline wear
- Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance
- Recommended for race use only
- 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability
HC7-XXR4 kit features a MaXX pressure plate for the serious enthusiast. ACT MaXX pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT’s 4-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 4-pad rigid race disc, engagement is harsher, but shifting is faster. The 4-pad rigid race disc is well-suited for the smaller disc sizes in smaller engines.
Note: Automotive Stuff is an authorized dealer of all ACT products, so your new product will include the full factory warranty.
Since 1994, Advanced Clutch Technology has specialized in performance clutches and flywheels. All products are made from the highest quality materials and then necessarily tested to ensure they perform to the customers’ expectations.
